Hardness Tester PCE-DD-A Shore A
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

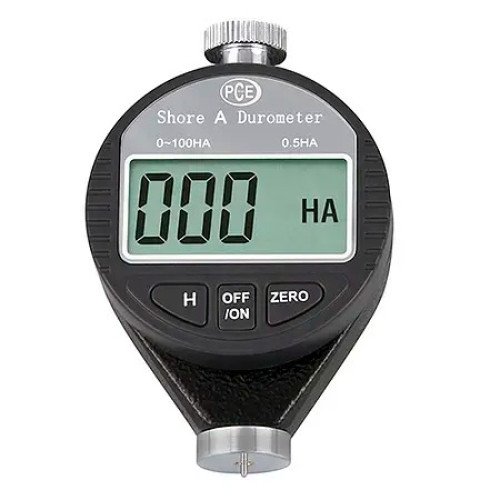

PCE-DD-A Hardness Tester
To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness
To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness
The PCE-DD-A Hardness Tester is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Hardness Tester is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.
Highlights
- Handheld device
- Large digital display

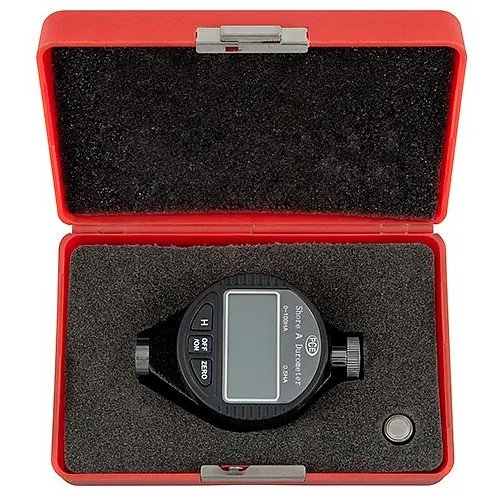

- Plastic case included
- For Shore A measurements
- Easy to use
- Large digital display
- Plastic case included
- For Shore A measurements
- Easy to use
Specification
| Measurement area | 0 ... 100 Shore A |
| Resolution | 0.5 |
| Accuracy | ± 2 |
| Depth of indentation | 0 mm ... 2.5 mm / 0 in ... 0.01 in |
| Pressure force | 1 kg / 2.2 lbs |
| Indenter | 35° |
| Dimensions | 80 mm x 60 mm x 25 mm / 3.14 in x 2.36 in x 0.4 in |
| Power supply | 1 x 1.5V (SR44) |
| Weight | Approx. 300 g / < 1 lb |
