Closing force measurement system for bus and train doors and sliding steps
Closing force measuring device / safety through closing force measurement
Closing force measuring device / safety through closing force measurement

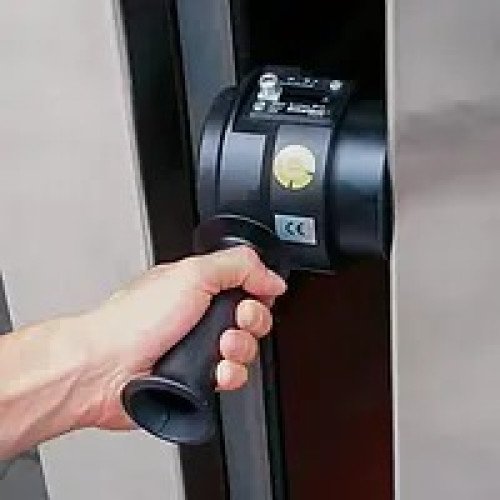

The original BIA class 1 closing force measuring device is an electronic closing force measuring device for rail vehicle and bus doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

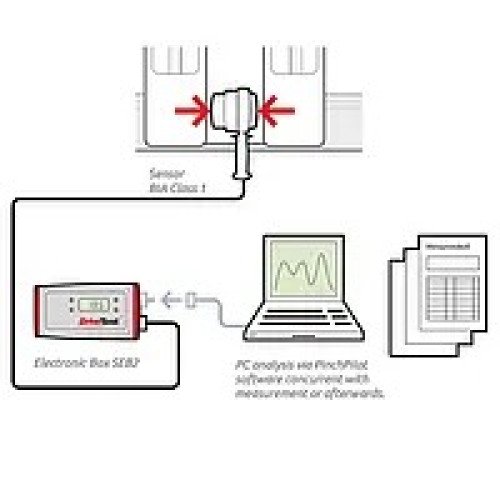

For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements for a complete vehicle can be taken over, printed out in tabular form and saved in a database.
We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements for a complete vehicle can be taken over, printed out in tabular form and saved in a database.
We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
Highlights
- Applicable standards – EN 14752:2005, VDV 111, 2001/85/EG
- Precise measurements
- Robust design
- Easy to use
- Operation with a single button or remotely via Microsoft® DLL interface or National
Instruments® LabView library

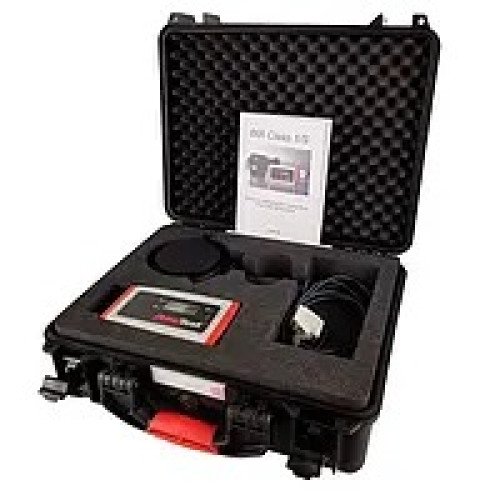

- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support – calibration service, standard change service
- Support for the management of large fleets
- Precise measurements
- Robust design
- Easy to use
- Operation with a single button or remotely via Microsoft® DLL interface or National
Instruments® LabView library
- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support – calibration service, standard change service
- Support for the management of large fleets
Specification
| Original BIA Class 1 | |
| Measuring range | 25 ... 310 N |
| Accuracy | +/– 3 N or 3% of reading |
| Resolution | 1 N |
| Stiffness | 10 N/mm |
| Gap width | 115 mm / 4.5" |
| Diameter | 100 mm / 3.9" |
| Measuring principle | DMS transducer |
| Acquisition frequency / rate | 250 Hz / 4 ms |
| Power supply | battery 9 V block, e.g. 6LR61 |
| Battery voltage monitoring | yes |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | -40 to +50 °C / -40 to 122 °F |
| Humidity | max. 90% rel. h, non-condensing. |
| Dimensions | 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5" |
| Weight | 2.1 kg / 4.6 lb |
| Display device SEB2 | |
| - Data logger unit with LCD display and LED status indicators, control button, serial interface | |
| - Optional PC-controlled measurement | |
| - 9 V battery supply | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification - System requirements software PinchPilot (see tab Software/App) | |
