Closing Force Measuring Device BIA 600 for rail vehicle doors
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Closing force measuring device / safety through closing force measurement
Closing force measurement system for rail vehicle doors
Closing force measurement system for rail vehicle doors

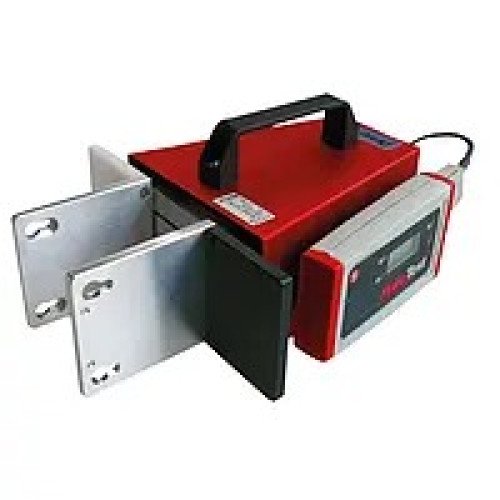

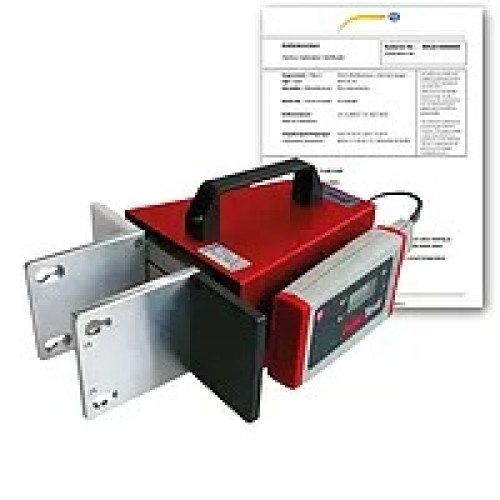

The closing force measuring device is an electronic measuring device for rail vehicle doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.
For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed for the clamping force measuring device, which drastically reduces the measurement process and the effort involved in documentation. With just a few operating steps, the measurements of a complete vehicle can be taken over, evaluated in tabular or graphic form and then printed out as a report.
For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed for the clamping force measuring device, which drastically reduces the measurement process and the effort involved in documentation. With just a few operating steps, the measurements of a complete vehicle can be taken over, evaluated in tabular or graphic form and then printed out as a report.
We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
Highlights
- Applicable standards DIN EN 14752:2015, DIN EN 14752:2005 (optional)
- Precise measurements
- Robust design
- Ease of use - One button operation or remote control via - Microsoft® DLL
Interface or National Instruments® LabView library
- Professional PC software PinchPilot
- Spacers for all opening widths according to EN 14752:2015
- Automatic limit value setting by distance detection
- Complete scope of delivery of all components in a high-quality transport case
- Support for the management of large fleets
- Precise measurements
- Robust design
- Ease of use - One button operation or remote control via - Microsoft® DLL
Interface or National Instruments® LabView library
- Professional PC software PinchPilot
- Spacers for all opening widths according to EN 14752:2015
- Automatic limit value setting by distance detection
- Complete scope of delivery of all components in a high-quality transport case
- Support for the management of large fleets
Specification
| BIA600 | |
| Application of force | on both sides |
| Measuring range | 0 ... 700 N |
| Accuracy | +/– 3 N (0–100 N) |
| +/– 3 % (>100 N) | |
| Spring rate | 10 N/mm |
| Opening width | 90 mm / 3.5" |
| Area | 100 x 100 mm / 3.9 x 3.9" |
| Force sensor | DMS bridge |
| Dimensions | 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3" |
| Weight | 3.0kg / 6.6 lb |
| Display device SEB2 | |
| - Data logger unit with LCD display and LED status indicators, control button, serial interface | |
| - Optional PC-controlled measurement | |
| - 9 V battery supply | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak display | |
| - Rating display i. O./n. i. O. | |

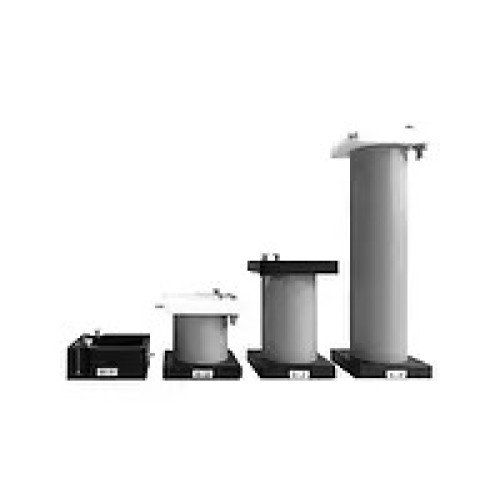

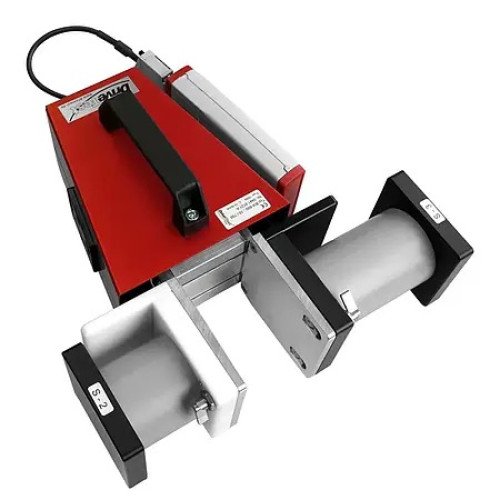

| Spacers | |
| - Complete set for all opening widths according to EN 14752:2015 | |
| - Automatic detection of the spacers used | |
| - Automatic limit value adjustment according to opening width | |
| - Easy to use, quick assembly without tools | |
| - Robust design, low weight, POM | |
| - Together with BIA 600 sensor, SEB2 in a carrying case | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification | |
