Temperature Penetration Sensor PT-527 (PT-100 Type B) K-Type
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

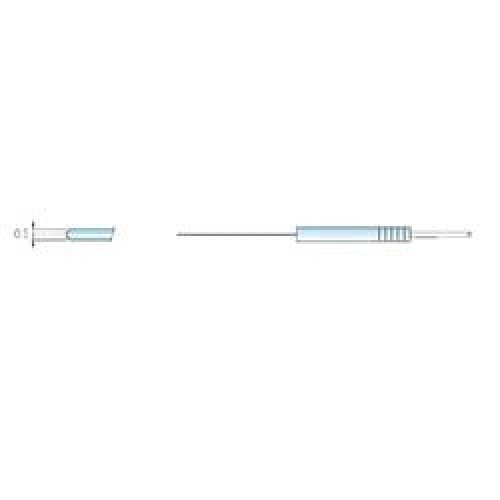

PT-100 temperature sensor with beveled tip
- Needle sensor / stainless steel
- Sensor: Pt 100
- Max.temperature: 240 °C / 464 °F
- Response time: 4 seconds
- Insertion area: 200 mm
- Diameter: 5mm
- Accuracy: According to IEC 751 class B
- 3-wire system
- Coiled cable, insulated
- Cable length: 1000 mm
- Cable end stripped
- Needle sensor / stainless steel
- Sensor: Pt 100
- Max.temperature: 240 °C / 464 °F
- Response time: 4 seconds
- Insertion area: 200 mm
- Diameter: 5mm
- Accuracy: According to IEC 751 class B
- 3-wire system
- Coiled cable, insulated
- Cable length: 1000 mm
- Cable end stripped
