PCE-USM RS232 Data Logger
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Data logger adapter RS232 to USB / TXT format / Time - Date Stamp /
Query function / external power / 4GB USB Stick incl.
Query function / external power / 4GB USB Stick incl.

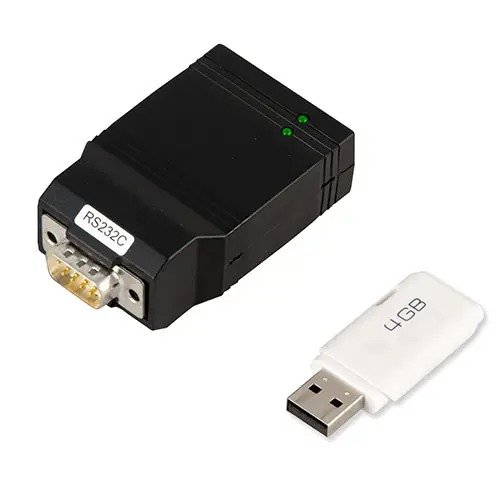

This RS232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and store the received data on a USB stick in TXT format. The power supply of the RS232 - USB data logger is carried out by an external power adapter which is included. The RS232 - USB data logger can store received data with time and date stamp, orautomatically query data in configurable time intervals.

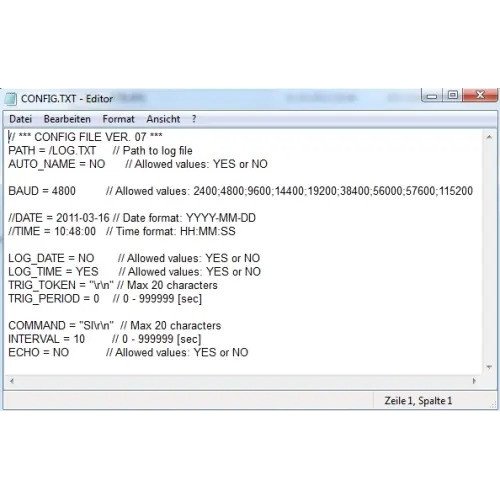

The query commands and other settings can be easily changed in a .txt format and with the help of a configuration file,transferred via the USB stick, andplayed on theRS232 - USB data logger. The RS232 - USB data logger can always save the data in the same folder or create a new folder but always after the USB flash drive has been removed from the adapter and is added again.
The query commands and other settings can be easily changed in a .txt format and with the help of a configuration file,transferred via the USB stick, andplayed on theRS232 - USB data logger. The RS232 - USB data logger can always save the data in the same folder or create a new folder but always after the USB flash drive has been removed from the adapter and is added again.
Highlights
- TXT Format
- Query commands adjustable
- Query cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB stick incl.
- Query commands adjustable
- Query cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB stick incl.
Specification
| Entrance | Sub-D 9 Male Pin 2 - TxD transmit data Pin 3 - RxD receive data Pin 5 - Ground |
| Exit | USB A socket |
| Storage format | TXT |
| Memory function | Manual (stores received data) Automatic (queries data fromitself) |
| Memory | 4 GB USB Flash Drive for up to 64,000,000 Records (date / time / weight / unit) |
| Power supply | 12 V / 1.4 A power adapter included |
| Dimensions | 65 x 45 x 25 mm (without USB Stick) |
| Weight | 50 g (without power supply) |
Delivery Scope
1 x RS-232 - USB data logger
1 x 4 GB USB Stick
1 x power supply
1 x user manual
1 x 4 GB USB Stick
1 x power supply
1 x user manual
