Description
Description

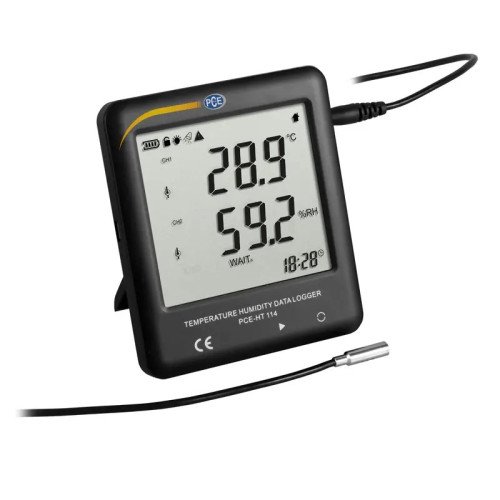

Data Logger for Temperature and Humidity PCE-HT 114-ICA
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage / Fast reading via USB / Adjustable alarm limits / External sensor
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage / Fast reading via USB / Adjustable alarm limits / External sensor
The data logger for temperature and humidity has a temperature and humidity sensor on 2 m / 6.6 ft cable. The hygrometer records the temperature and humidity in the interior of the refrigerator and simultaneously displays it via the LCD display. The hygrometer PCE-HT 114 stores the measured values in a format that is used by the software for analysis as well as in PDF format. In the PDF document that creates the hygrometer, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values is displayed directly in the measurement report. The hygrometer has a base and a mounting tab on the back. The display can be switched off for battery saver.
The data logger for temperature and humidity can store up to 25,920 readings, which can be evaluated using the software. To connect to a PC, the hygrometer has a USB port. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.
Highlights
- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor
- Incl. ISO calibration certificate
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor
- Incl. ISO calibration certificate
Specification
| Measuring function | Temperature |
| Measuring range | -40 ... 125°C / -40 ... 257°F (external) |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F) ± 0.5°C / 0.9°F (remaining range) |
| Measuring function | Humidity |
| Measuring range | 0 ... 100% rh (external) |
| Resolution | 0.1% RH |
| Accuracy | ± 3% (10% ... 90%) |
| ± 4% (remaining area) | |
| Response time | 5 min |
| Storage | 25,920 readings |
| Storage rates | 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable |
| Measuring interval / refresh rate Display | 5 s |
| Alarm | Adjustable audible alarm |
| Interface | USB |
| Power supply | 3 x 1.5V AAA batteries 5V USB |
| Battery life | Approx. 1 year (without lighting / without alarm) |
| operating conditions | -30 ... 65°C / -22 ... 149°F |
| Storage conditions | -30 ... 65°C / -22 ... 149°F (without battery) |
| Dimension | 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in |
| Weight | 120 g / < 1 lb |
| Degree of protection | IP20 |
Delivery Scope
1 x Data Logger for Temperature and Humidity PCE-HT 114
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual
1 x ISO calibration certificate
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual
1 x ISO calibration certificate
