Manometer PCE-RVP 220
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

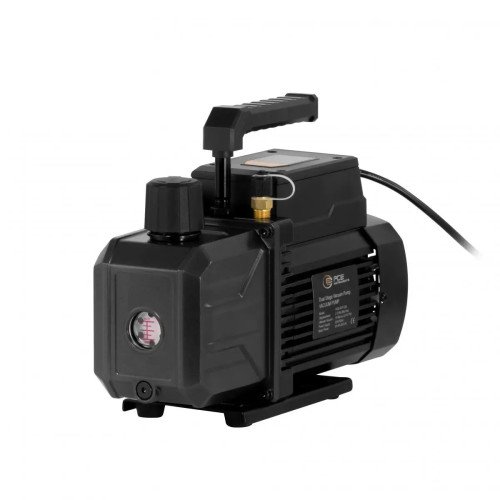

The Manometer is equipped with a reliable motor that provides sufficient torque for stable operation. The motor power is 0.34 hp (250W) and ensures efficient and reliable performance. With a flow rate of 56 to 68 l/min, the Manometer can quickly evacuate air and moisture from air conditioning systems, cooling systems or heat pumps. The pump has a 1/4-inch connection, which allows it to be used with various refrigerant hoses. An integrated filter element reduces oil mist, extends the service life of the Manometer and ensures a cleaner working environment. The ergonomic rubber handle facilitates transport and handling. The Manometer removes air and moisture from the system before refrigerant is filled, improving the efficiency and service life of the system.
Highlights
Specification
| General technical data | |
| Cable length | 130 cm |
| Connections | 1/4 inch SAE |
| Motor power | 0,34 PS |
| Oil capacity | 280 ml |
| Ultimate vacuum | 0,02 mbar |
| Flow rate | 56 ... 68 l/min |
| Protection class (device) | IP20 |
| Power supply | 220 V AC | 50 Hz |
| Connector type | Schuko plug |
| Operating conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Storage conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Dimensions ( L x W x H ) | 305 x 123 x 230 mm |
| Weight | 7863 g |
