Description
Description

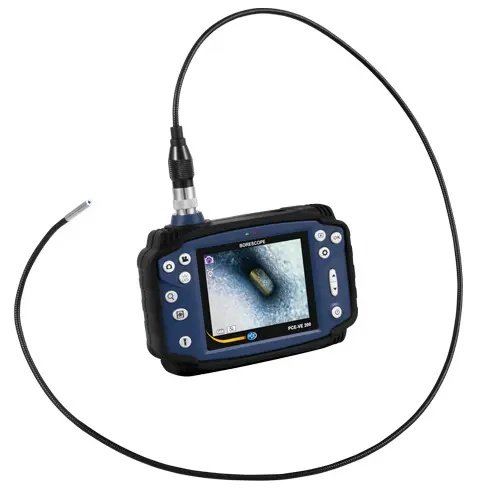

Small diameter (ø 4.5 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price
PCE-VE 200 is a car measuring device, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This car measuring device provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
Highlights
- 4.5 mm / 0.18 in diameter, semi-rigid
- 1 m / 3.28 ft cable length
- 180° image rotation
- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory

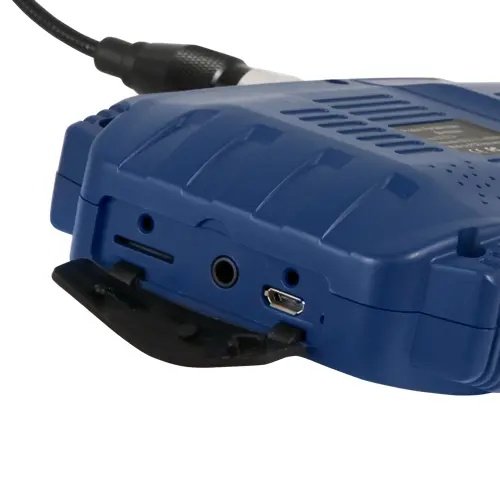

- Micro USB 2.0 and TV outputs
Specification
| Technical Specification | |||||||||||||||||
| Display | 3.5" LCD | ||||||||||||||||
| Resolution video function | AVI (640 x 480) | ||||||||||||||||
| Resolution image function | JPEG (1600 x 1200) | ||||||||||||||||
| Image rotation | 180° rotation and mirror function | ||||||||||||||||
| Freeze function | yes | ||||||||||||||||
| Zoom | up to 4-times | ||||||||||||||||
| Storage medium | Micro SD card | ||||||||||||||||
| Menu languages | German English Spanish French Russian Japanese simplified Chinese traditional Chinese | ||||||||||||||||
| Interfaces | Micro USB 2.0, TV-output, Micro SD card slot | ||||||||||||||||
| TV-output | PAL | ||||||||||||||||
| Power supply | Li-Ion battery | ||||||||||||||||
| Battery capacity | 2600 mAh | ||||||||||||||||
| Operating conditions | -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 % | ||||||||||||||||
| Technical Specification of Video Borescope PCE-VE 200 (Borescope cable) | |||||||||||||||||
| Cable diameter | 4.5 mm / 0.17" | ||||||||||||||||
| Image sensor | 1/8" CMOS chip | ||||||||||||||||
| Resolution camera | 640 x 480 pixel | ||||||||||||||||
| Camera lighting | 6 white LEDs (intensity can be set) | ||||||||||||||||
| Field of view / angle of view | 90 ° | ||||||||||||||||
| Field of view depth | 15 ... 100 mm / 0.59 ... 3.94" | ||||||||||||||||
| Length of camera hose | 1 m / 3ft 3" | ||||||||||||||||
| Pushcable | semi-flexible (semi-rigid spiral) | ||||||||||||||||
| Environmental conditions of Video Borescope PCE-VE 200 | |||||||||||||||||
| |||||||||||||||||
