Description
Description
PCE-MA 202 Moisture Meter
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content
The moisture meter PCE-MA 202 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture meter dries the material to be weighed, and then calculates the moisture content from the weight difference. The moisture meter can determine the smallest weight differences thanks to a readability of 0.01 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the moisture meter. Accordingly, the moisture meter is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the moisture meter can be calibrated at any time.
Highlights
- Readability: 10 mg / 0.01 g

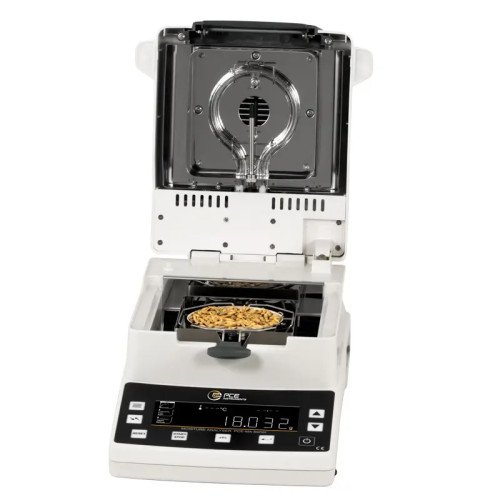

- Heating chamber for moisture determination

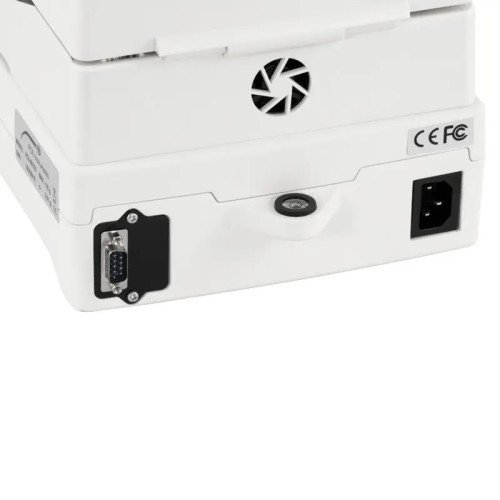

- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Ease of use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD display with nine membrane keys
Specification
Technical specifications | |
| Weighing range | 200 g |
| Readability | 10 mg / 0.01 g |

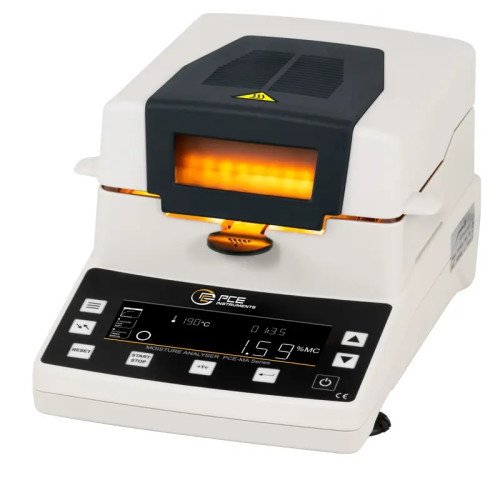

| Heating element | halogen lamp |
| Temperature range | +40 ... +199 °C |
| Heating time | 1 ... 99 min. adjustable |
| Humidity measurement range | 0 ... 100 % |
| Readability | 0.1 % |
| Memory | 15 drying programs |
| Interface | RS-232 |

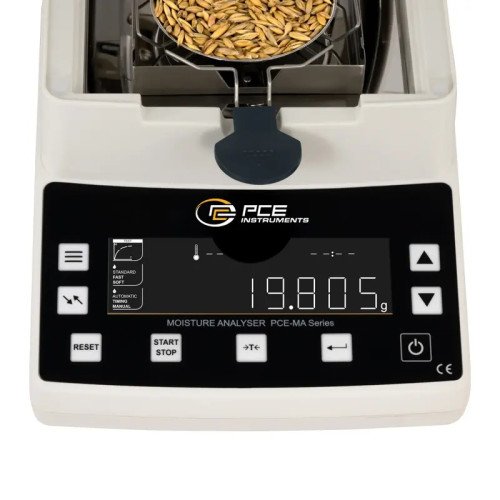

| Display | LCD, 9 membrane keys |
| Power supply | 220 V / 50 Hz or 110 v / 60 Hz |
| Dimensions | 200 x 180 x 380 mm |
Delivery Scope
1 x PCE-MA 202 moisture meter
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
