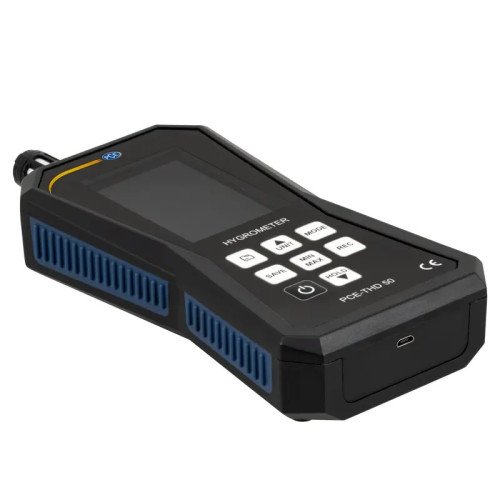

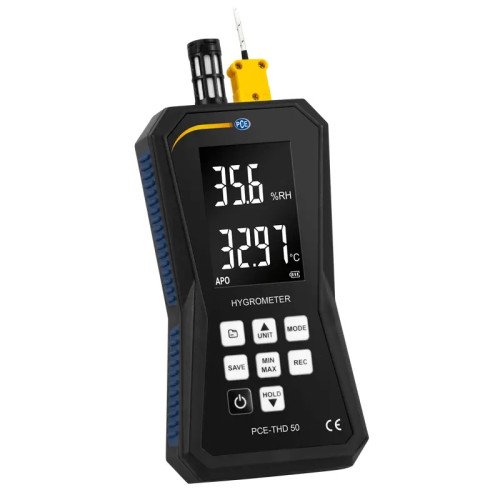

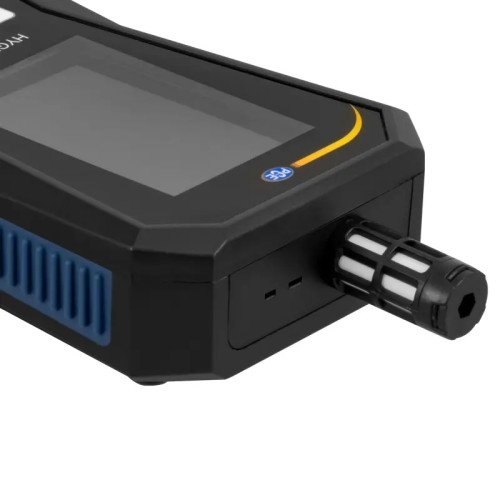

Moisture Meter PCE-THD 50
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Moisture meter with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate
The moisture meter is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The moisture meter can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the moisture meter. In addition, the dew point and wet bulb temperature is calculated and displayed by the moisture meter. In addition, any type K thermocouple can be connected to the moisture meter in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the moisture meter to the thermocouple.
Measured values can be recorded with the data logger function of the moisture meter. The large memory of 32,000 measuring points in the moisture meter allows recording of measured values over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the moisture meter and the free software. The data logged by the moisture meter can be exported in CSV file format for further processing.
A 3.7 V Li-ion battery is installed in the moisture meter to enable mobile use. This battery can be recharged via the micro-USB interface on the moisture meter.
Measured values can be recorded with the data logger function of the moisture meter. The large memory of 32,000 measuring points in the moisture meter allows recording of measured values over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the moisture meter and the free software. The data logged by the moisture meter can be exported in CSV file format for further processing.
A 3.7 V Li-ion battery is installed in the moisture meter to enable mobile use. This battery can be recharged via the micro-USB interface on the moisture meter.
Highlights
- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
Specification
| Air temperature | |
| Measuring range | -20 … 60 °C（-4 … 140 °F） |
| Resolution | 0.01 °C/°F |
| Accuracy | ±0.5 °C @ 0 … 45 °C，±1.0 °C |
| in remaining range | |
| ±1.0 °F @ 32 … 113 °F，±2.0 °F | |
| in remaining range | |
| Measuring rate | 3 Hz |
| Relative humidity | |
| Measuring range | 0 … 100 % RH |
| Resolution | 0.1 % RH |
| Accuracy | ±2.2 % RH (10 … 90 % RH) |
| @ 23 °C (73.4 °F) | |
| ±3.2 % RH (<10，>90 % RH) | |
| @23 °C (73.4 °F) | |
| Response time | <10 s (90 % RH, 25 °C (77 °F), with no wind) |
| Thermoelement | |
| Sensor type | Thermoelement Type K |
| Measuring range | -100 … 1372 °C（-148 … 2501 °F） |
| Resolution | 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F |
| Accuracy | ±(1 % ±1 °C) |
| Calculated values | |
| Wet bulb temperature | -20 … 60 °C （-4 … 140 °F） |
| Dew point temperature | -50 … 60 °C （-58 … 140 °F） |
| Further specifications | |
| Internal memory | 99 measuring points |
| (redundant, only readable on the measuring device) | |
| 32,000 measuring points | |
| (only readable on the PC) | |
| Power supply | 3.7 V Li-ion battery |
| Operating conditions | 0 … 40 °C (32 … 104 °F) <80 % RH, |
| non-condensing | |
| Storage conditions | -10 … 60 °C (14 … 140 °F) <80 % RH, |
| non-condensing | |
| Dimensions | 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2" |
| Weight | 248 g / 8.74 oz |
Delivery Scope
1 x Moisture meter PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
