Description

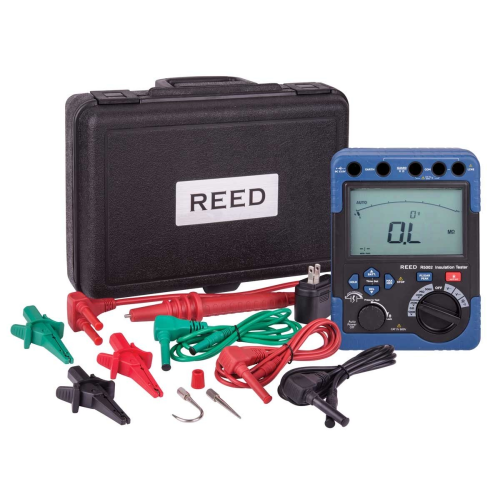

REED R5002 Offers
This high voltage insulation tester is capable of testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.
Features
- Test Voltages of 500V, 1000V, 2500V, and 5000V
- Measure Insulation Resistance to 60GΩ
- Backlit LCD display with analog bargraph
- Timer function for insulation resistance measurements (1 to 15min)
- AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions
- Polarization index measurement (PI)
- Dielectric absorption ratio measurements (DAR)
- Max/Min, Peak, Relative value and Data Hold functions
- Cat. IV 600V safety rating
- Low battery indicator and auto shut off
