Capacitance Decade Box
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description

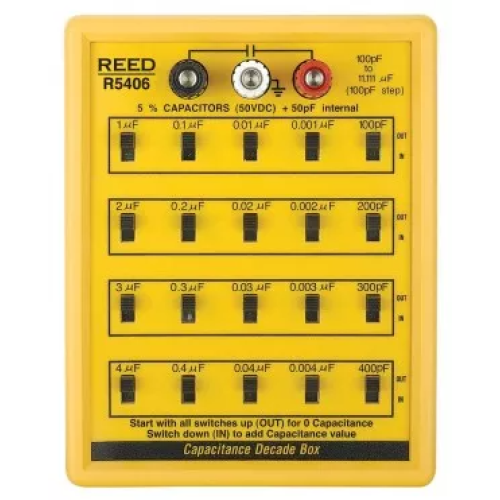

REED R5406 Offers
This capacitance decade box can be used to design and test circuits. The R5406 features slide switches that allow a user to easily add or subtract to quickly reach the desired capacitance range. Once tested, a capacitor size indicated by the decade box can then be put into the circuit.
Features
- 5% capacitance substitution from 100pF to 11.111µF
- Excellent for circuit development
- 3 binding posts permit isolated substitutions
- 5 decade ranges of capacitance
- Durable construction
