Description

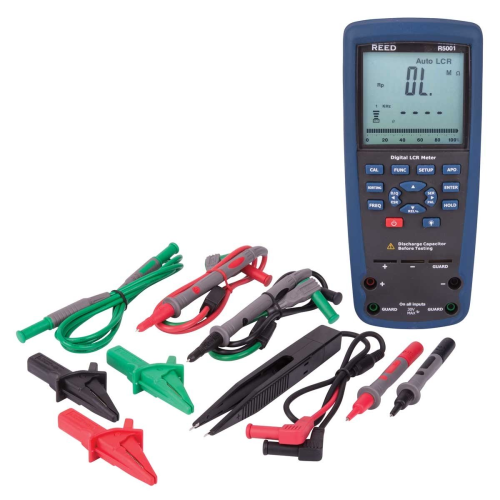

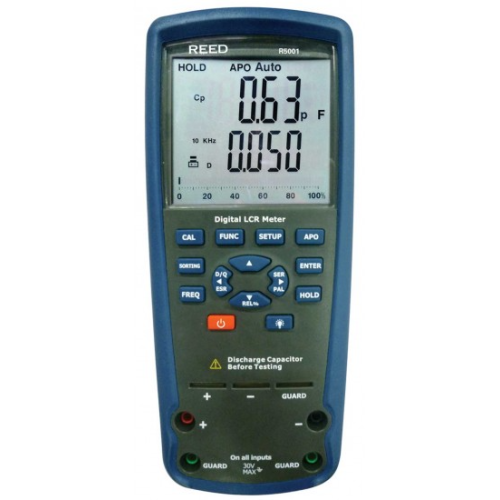

REED R5001 Offers
This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle (Ø) and equivalent series/parallel resistance (ESR or Rp). The R5001 features an easy-to-read LCD display with backlight, and data hold/relative functions.
Features
- Measures inductance, capacitance and resistance
- Autoranging for AC impedance and DE resistance measurement
- Auto LCR smart check and measurement
- Series/Parallel modes
- Ls/Lp/Cp with D/Q/Ø/ESR parameters
- Support DCR mode 200Ω to 200MΩ
- High accuracy with 4 / 5 terminal Kelvin measurement
- 10kHz testing frequency and up to 100kHz output frequency
- Backlit dual LCD display
- Data hold and relative functions
- Low battery indication with auto power off
